1453592 Power Distribution Block

Marathon

$ 139.00

Sorry, this product is temporarily out of stock.

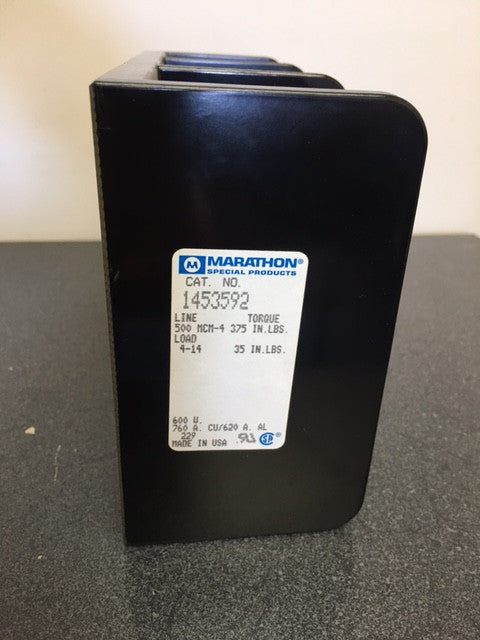

Marathon Special Products 1453592 Power Distribution Block



3-Pole 760 Amps 600 Volts AC/DC



Wire Range

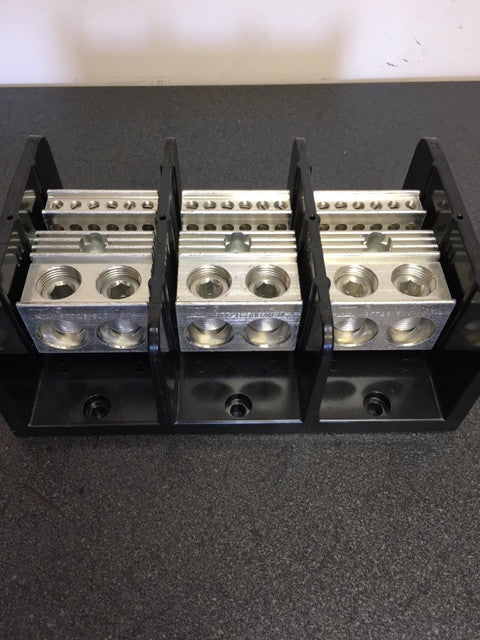

• Line: (2) 500 kcmil - #6 AWG

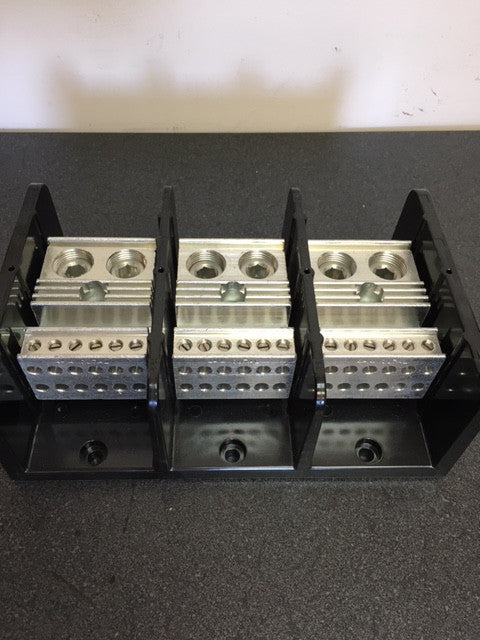

• Load: (12) #4 - #14 AWG


Electrical Ratings
• 760 Amps
• 600V per UL 1059 & CSA 22.2 No.158, class B & C requirements
• Short circuit current ratings (SCCR): See SCCR section below for specifications.
• CU7AL - 75°C connector terminal rating with copper or aluminum wire
• Factory & Field Wiring


Material Information
• Insulator base:
• Phenolic
• Flammability rating of insulator base UL94V0
• Insulator base temperature rating: -40°C to 150°C (UL RTI)
• Connector: aluminum, tin plated
• Line terminal set screws: aluminum, tin plated
• Load terminal set screws: steel, nickel plated
• Connector mounting screws: steel, zinc plated
• RoHS compliant
