Contrinex DW-AS-503-065-001
Contrinex
$ 69.50

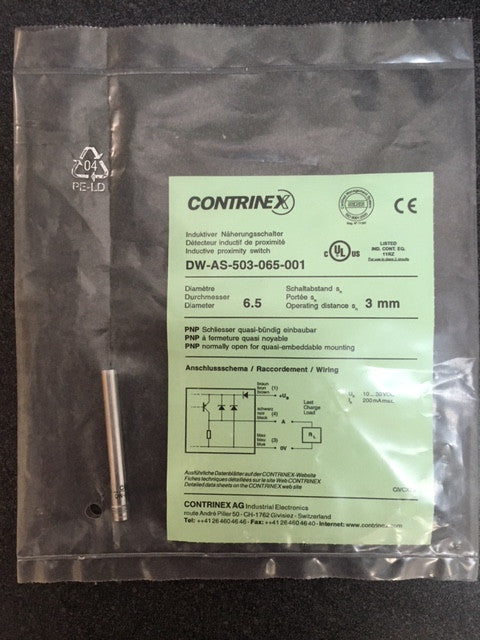

Contrinex DW-AS-503-065-001 prox switch
Inductive Proximity Sensor
| Application Type | Long distance |
| Rated operating distance sn | 3 mm |
| Mounting | Quasi-embeddable |
| Hysteresis | ≤ 20 % sr (10 % typ.) |
| Repeat accuracy norm | ≤ 5 % sr |
| Supply voltage range UB | 10 … 30 VDC |
| Permissible ripple content | ≤ 20 % UB |
| Output current | ≤ 200 mA |
| Voltage drop | ≤ 2 V |
| No-load supply current | ≤ 10 mA |
| Off-state current | ≤ 0.1 mA |
| Switching frequency | ≤ 1000 Hz |
| LED | Built-in |
| Ambient temperature range TA | -25 ... +70 °C |
| Ambient temperature range TA US | -13 … +158 °F |
| Temperature drift of sr | ≤ 10 % |
| Short-circuit protection | built-in |
| Polarity reversal protection | Built-in |
| Power on reset | Built-in |
| Degree of protection | IP 67 |
| Housing material | Chrome-plated brass |
| Connection | Connector S8 |
