G10Z-003 Tilt Switch is now SP-1521
G10Z-003 Tilt Switch is now SP-1521

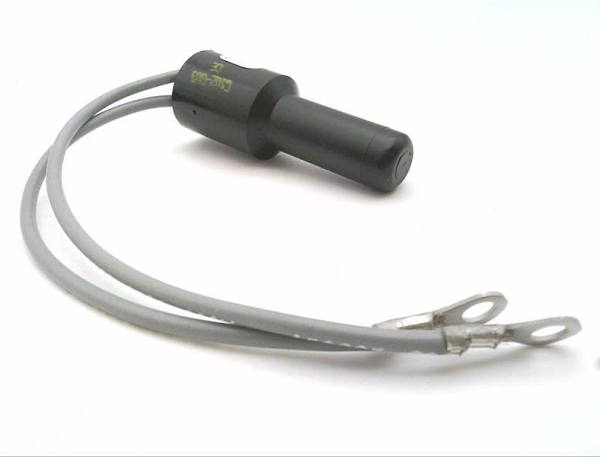

G10Z-003 Durakool mercury tilt switch The G10Z-003 switch is now OBSOLETE! When ordering, you will receive SP-1521 as a replacement.
G10Z-003 Durakool tilt switches “make” when the electrode is tilted below horizontal and “break” when tilted above the horizontal. Total travel from “make” to “break” is the “Maximum included angle” The component to which the switch is attached must have a total tilt angle greater than the “Maximum included angle” for proper operation.
G10Z-003 Durakool tilt switch features:
* Un-Insulated
* Form: NO/NC/SPST/Mount dependent
* Angles Referenced from Horizontal
* Single Electrode
* Hermetically Sealed
* Small Package Size
* Narrow Included Angle
* High Current Capability
* Low Contact Resistance
* Long Life
