Struthers-Dunn M35AAA-24D

Struthers-Dunn

$ 150.00

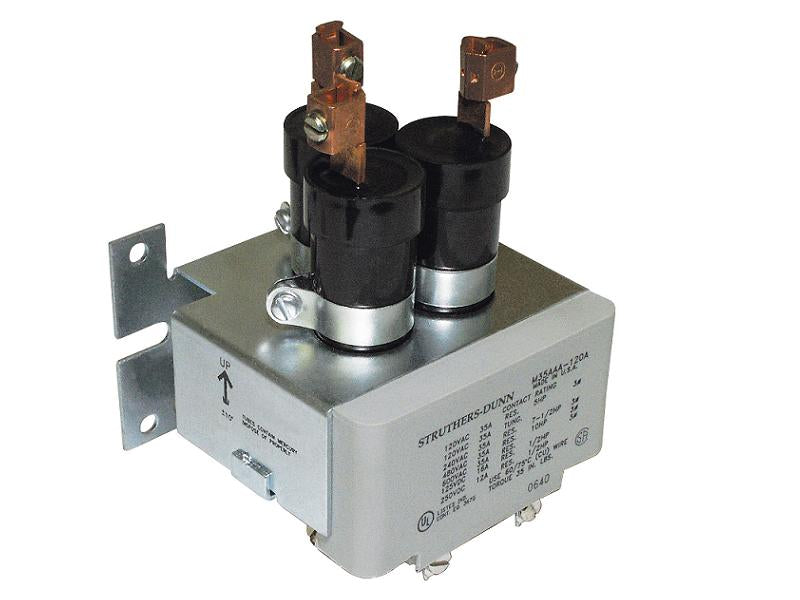

Struthers-Dunn M35AAA-24D

Relay 3 Pole 35 amp 24VDC coil N.O.

The 35 & 60 series products are mercury displacement relays. Sealed tubes containing liquid mercury assure contact surfaces are freshly replenished with every contact movement. Contact resistance is among the lowest available for any electro-mechanical relay. The M35 series offers superior long life performance.

Specifications

Series

 M35

Contact Arrangement

 AAA (3 N.O. tube)

Coil Voltage

 24 VDC

Contacts

Contact Configuration

 Up to 3PST

Contact Material

 Liquid Mercury

Contact Rating

 35 A

Contact Rating 120 / 240VAC Resistive

 35 A

Contact Rating 28VDC Resistive

 35 A

Motor 120VAC 1 Phase

 5 hp

Motor 240VAC 1 Phase

 5 hp

Contact Resistance, Initial

 50 milliohms max at 6VDC
